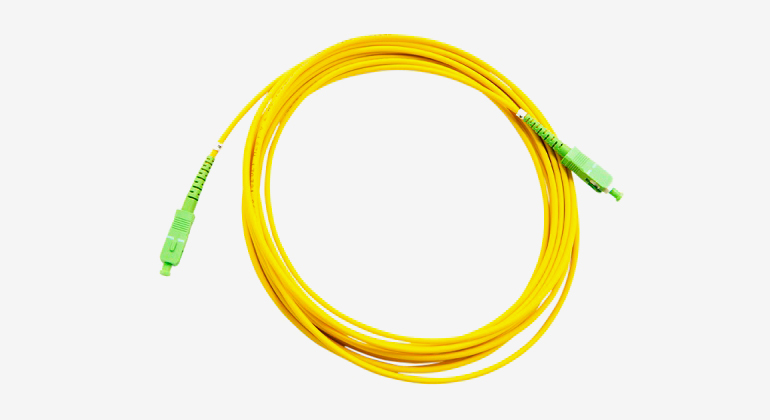

Pigtail and patch cables

The new range of patch cables offers unique ultra-low insertion loss and back reflection, securing a limited loss budget for the transmission system, resulting in an extended network reach, better signal quality and reduces amplifier costs.

Quality and test:

Each connector is thoroughly tested and reported with an interferometric microscope. Additionally, each connector is tested with focus on Insertion Loss and Return Loss. Serial number, IL and RL are written on the labels at each connector end as a standard.

This ensures a unique quality with excellent performance, resulting in an optimal connection and high network uptime.

Advantages:
  • Very high quality with excellent performance
  • Typ. <0.1 dB insertion loss per connector
  • Test certificate available on each connector
  • High reliability
  • Increases network uptime
Optical connectors:

DKT provides a variety of optical connectors.

The DKT connectors are known for its locking mechanism that gives an audible click when pushed into the adapter. This push-pull design prevents rotation misalignment.

The connector family includes the Physical Contact (PC) pre-dome polished ferrule end face that reduces back reflection over a ferrule with a flat end face. To further reduce the unwanted back reflection DKTCOMEGA offers the Angled Physical Contact (APC) version that has a ferrule end face with an 8˚ angle. The DKT connector is available in a single mode version with zirconia ceramic ferrules, and is fully compatible with NNT-SC hardware. The precision molded body and boot are made from UL-rated material.

Read more

Get datasheet

Pigtails

List of available products

Type Number
Item Number
Description


PT-SC/APC-1,5-DKT

77851

Premium pigtail, 1.5 m, DKT type



PT-SC/PC/APC-0.75-DK

77875

2x Premium pigtail, 0.75 m, DKT type



Pigtails on request

List of available products on request

Type Number
Item Number
Description


PT-SC/APC-3-DKT

77853

Premium pigtail, 3 m, DKT type



PT-SC/PC-1,5-DKT

77861

Premium pigtail, 1.5 m, DKT type



PT-SC/PC-3.5-DKT

77864

Premium pigtail, 3.5 m, DKT type



PT-SC/APC/APC-0.75-D

77876

2x Premium pigtail, 0.75 m, DKT type



PT-LC/APC-3-DKT

77893

Premium pigtail 3 m , DKT type



Patch cables

List of available products

Type Number
Item Number
Description


P-SC/APC-0,5-DKT

77000

Premium patchcable, 0,5 m



P-SC/APC-1-DKT

77001

Premium patchcable, 1 m



P-SC/APC-2-DKT

77002

Premium patchcable, 2.0 m



P-SC/APC-3-DKT

77003

Premium patchcable, 3.0 m



P-SC/APC-5-DKT

77005

Premium patchcable, 5.0 m



Patch cables on request

List of available products

Type Number
Item Number
Description


P-SC/APC-4-DKT

77004

Premium patchcable, 4.0 m



P-SC/APC-6-DKT

77006

Premium patchkabel, 6 m



P-SC/APC-7-DKT

77007

Premium patchcable, 7.0 m



P-SC/APC-10-DKT

77010

Premium patchcable, 10 m



P-SC/APC-15-DKT

77015

Premium patchcable, 15 m



P-SC/APC-40-DKT

77040

Premium patchkabel, 40 m



P-SC/APC-1-DKT

77101

Premium patchcable, 1 m



P-SC/APC-2-DKT

77102

Premium patchcable, 2 m



P-SC/APC-5-DKT

77105

Premium patchcable, 5 m



P-SC/APC-10-DKT

77110

Premium patchcable, 10 m



P-LC/APC-5-DKT

77205

Premium patchcable, 5 m



P-LC/APC-7-DKT

77207

Premium patchcable, 7 m



P-LC/APC-8-DKT

77208

Premium patchcable, 8 m



P-LC/APC-10-DKT

77210

Premium patchcable, 10 m



P-SC/PC-1-DKT

77251

Premium patchcable, 1 m



P-LC/APC-1-DKT

77401

Premium patchcable, 1 m



P-LC/APC-3-DKT

77403

Premium patchkabel, 3 m



P-LC/APC-5-DKT

77405

Premium patchcable, 5 m



P-LC/APC-7-DKT

77407

Premium patchkabel, 7 m



P-SC/APC-SC/PC-2-DKT

77522

Premium hybrid patchcable, 2 m



P-SC/APC-SC/PC-5-DKT

77525

Premium hybrid patchcable, 5 m



P-SC/APC-SC/PC-7-DKT

77527

Premium hybrid patchcable, 7 m



P-SC/APC-SC/PC-10-DKT

77530

Premium hybrid patchcable, 10 m



FC/PC-SC/APC-3000-DKT

77550

Patch cable for optical power meter



P-SC/APC-LC/APC-2-DKT

77602

Premium hybrid patchcable, 2 m



P-SC/PC-LC/PC-2-DKT

77652

Premium hybrid patchcable, 2 m



P-SC/APC-LC/APC-1-DKT

77801

Premium hybrid patchcable, 1 m



P-SC/APC-LC/APC-2-L

77802

Premium hybrid patchcable, 2 m, DKT type



P-SC/APC-LC/APC-3-L

77803

Premium hybrid patchcable, 3 m, DKT type



P-SC/APC-LC/APC-4-L

77804

Premium hybrid patchcable, 4 m, DKT type



P-SC/APC-LC/APC-5-L

77805

Premium hybrid patchcable, 5 m, DKT type



P-SC/APC-LC/APC-10-L

77810

Premium hybrid patchcable, 10 m, DKT type



P-LC/UPC-LC/APC-2-L

77811

Premium hybrid patch kabel, 2m, DKT type



P-E2000-LC/APC-1

77821

Premium hybrid patch kabel, 1m, DKT type



Fiber installation cables

List of available products

Type Number
Item Number
Description


A4-4-1SCPC-1SCAPC-30

77980

Installation cable 4mm / 30m
4 fibers, one end 1x SC-PC & 1x SC-APC



A4-4-1SCPC-1SCAPC-50

77981

Installation cable 4mm / 50m
4 fibers, one end 1x SC-PC & 1x SC-APC



A4-4-1SCPC-1SCAPC-70

77982

Installation cable 4mm / 70m
4 fibers, one end 1x SC-PC & 1x SC-APC



Other products

List of other available products

Type Number
Item Number
Description


OA-SC/APC-GR-02

67200

Optical adaptor SC/APC-SC/APC
Green w/metal clips
Zirconia sleeve



ATTN-SC/APC-1

67541

Optical Attenuator, 1 dB
Premium Grade, 1250-1650 nm
RL <60dB, Loss +/-0,5dB



ATTN-SC/APC-2

67542

Optical Attenuator, 2 dB
Premium Grade, 1250-1650 nm
RL <60dB, Loss +/-0,5dB



ATTN-SC/APC-3

67543

Optical Attenuator, 3 dB
Premium Grade, 1250-1650 nm
RL <60dB, Loss +/-0,5dB



ATTN-SC/APC-4

67544

Optical Attenuator, 4 dB
Premium Grade, 1250-1650 nm
RL <60dB, Loss +/-0,5dB



ATTN-SC/APC-5

67545

Optical Attenuator, 5 dB
Premium Grade, 1250-1650 nm
RL <60dB, Loss +/-0,5dB



ATTN-SC/APC-6

67546

Optical Attenuator, 6 dB
Premium Grade, 1250-1650 nm
RL <60dB, Loss +/-0,5dB



ATTN-SC/APC-8

67548

Optical Attenuator, 8 dB
Premium Grade, 1250-1650 nm
RL <60dB, Loss +/-0,5dB



ATTN-SC/APC-10

67550

Optical Attenuator, 10 dB
Premium Grade, 1250-1650 nm
RL <60dB, Loss +/-0,5dB
