Filters & equalizers

Attenuators, Equalizers, and High-Pass Filters

The compact DKT attenuators, equalizers, and high-pass filters are easily mounted and very durable. All are designed with a free rotating nut, allowing installation without twisting the cable. Furthermore, the connectors are plated with a nickel-tin alloy, ensuring minimum corrosion over time. This nearly eliminates the need to retighten connectors across the cable network during the product’s lifespan, which is a common cause of error in cable networks. This greatly minimizes operational expenditures.

Attenuators, Return Path Attenuators and High-Pass Filters

Equalizers 1281MHz

High-Pass Filter 258MHz

Band-stop Filters

With the introduction of DOCSIS 3.1 there is a need to allow TV packages in one frequency range and downstream DOCSIS 3.1 in another frequency range. DKT offers these filters in a compact housing.

Filters blocking up to 822 MHz: BSF DOCSIS 3.1H

Filters blocking up to 550 MHz: BRF xxx-550

Low-Pass Filters

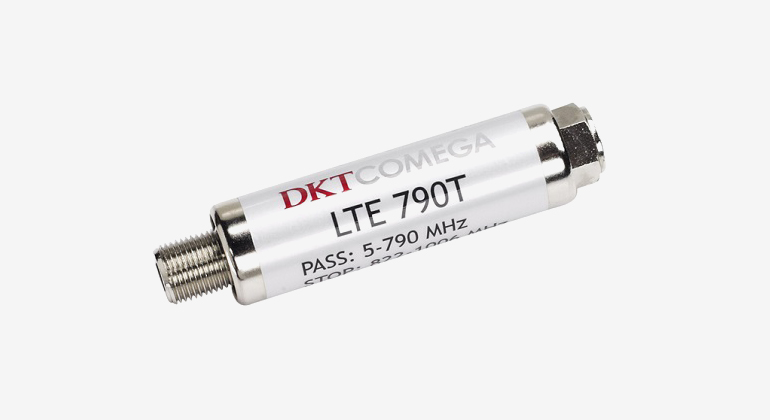

DKT offers a series of slim low-pass filters with low insertion loss. With sharp roll-off, these filters remove signals above specific cut-off frequencies. This also makes it possible to remove disturbances from the LTE bands. The filters can be designed to fit customer requested cut-off frequencies, an example being LPF 750T.

The DKT LTE filters are listed in the table at the bottom below.

MoCA POE Filter

When distributing MoCA signals inside the home, the MoCA POE filter effectively blocks these signals from leaving the home, offering high security. Please note that this filter also blocks part of the DOCSIS 3.1 signals, and must not be placed in a part of the network also carrying DOCSIS 3.1.

Read more

Get datasheet

Attenuators

List of available products

Type Number
Item Number
Attenuation (5-3000 MHZ)
File

ATT 1-F

50601

1 dB ± 0.3 dB

ATT 2-F

50602

2 dB ± 0.3 dB

ATT 3-F

50603

3 dB ± 0.3 dB

ATT 6-F

50606

6 dB ± 0.3 dB

ATT 7-F

50607

7 dB ± 0.3 dB

ATT 8-F

50608

8 dB ± 0.3 dB

ATT 9-F

50609

9 dB ± 0.3 dB

ATT 10-F

50610

10 dB ± 0.3 dB

ATT 12-F

50612

12 dB ± 0.3 dB

ATT 13-F

50613

13 dB ± 0.3 dB

ATT 16-F

50616

16 dB ± 0.3 dB

ATT 20-F

50620

20 dB ± 0.3 dB

Attenuators on request

List of available products on request

Type Number
Item Number
Attenuation (5-3000 MHZ)
File

ATT 5-F

50605

5 dB ± 0.3 dB

Equalizers 1281MHz

List of available products

Type Number
Item Number
Equalizer Value
File

DCM-65EQ-3G

40978

Equalizer module 3 dB for FSP-DCM-EQ

DCM-65EQ-6G

40979

Equalizer module 6 dB for FSP-DCM-EQ

DCM-65EQ-9G

40980

Equalizer module 9 dB for FSP-DCM-EQ

DCM-65EQ-12G

40981

Equalizer module 12 dB for FSP-DCM-EQ

T2-5-1218F14

44162

2 dB

T3-5-1218F14

44163

3 dB

T4-5-1218F14

44164

4 dB

T5-5-1218F14

44165

5 dB

T6-5-1218F14

44166

6 dB

T7-5-1218F14

44167

7 dB

T8-5-1218F14

44168

8 dB

T9-5-1218F14

44169

9 dB

T10-5-1218F14

44170

10 dB

Accessories

List of available products

Type Number
Item Number
Data
File

FSP-DCM-HPF

40977

Basic housing for:

40974, 40975

FSP-DCM-EQ

40982

Basic housing for:

40978, 40979, 40980,40981

LRE-TRE MOUNTING ANGLE

40976

Mounting angle for outdoor passives

High-Pass Filter

List of available products

Type Number
Item Number
Data
File

DCM-HF30

40974

Pass 30 – 1000 MHz
Stop 50 – 25 MHz

DCM-HF85

40975

Pass 84 – 1000 MHz
Stop 5 – 65 MHz

HPF 85

51005

Pass 87 – 1000 MHz
Stop 5 – 65 MHz



HPF 258

51007

Pass 258 – 1500 MHz
Stop 5 – 204 MHz

HPF-204MHA

51008

Pass 204 – 1200 MHz
Stop 5 – 175 MHz

Band-Stop-Filter

List of available products

Type Number
Item Number
Data
File

BSF 518-822H

42481

Pass 5 – 518 MHz
Stop 542-798 MHz; >40dB
Pass 822 – 1300 MHz



BSF 606-822H

42482

Pass 5 – 606 MHz
Stop 630-798 MHz; >40dB
Pass 822 – 1300 MHz



BSF 678-822H

42483

Pass 5 – 678 MHz
Stop 702-798 MHz; >40dB
Pass 822 – 1300 MHz



Band-Stop-Filter by request

List of available products on request

Type Number
Item Number
Data
File

BSF 726-822H

42484

Pass 5 – 726 MHz
Stop 750-798 MHz; >40dB
Pass 822 – 1300 MHz



BSF 374-430H

42485

Pass 5 – 350 MHz
Stop 374-340 MHz; >40dB
Pass 454 – 1300 MHz



BSF 390-710H

42488

Pass 5 – 390 MHz
Stop 414-686 MHz; >40dB
Pass 710 – 1300 MHz



BSF 550-710H

42490

Pass 5 – 550 MHz
Stop 574-686 MHz; >40dB
Pass 710 – 1300 MHz



BSF 630-822H

42493

Pass 5 – 630 MHz
Stop 654-798 MHz; >40dB
Pass 822 – 1300 MHz



BSF 702-822H

42494

Pass 5 – 720 MHz
Stop 726-798 MHz; >40dB
Pass 822 – 1300 MHz



BSF 414-654H

42495

Pass 5 – 390 MHz
Stop 414-654 MHz; >40dB
Pass 678 – 1300 MHz



BSF 518-654H

42496

Pass 5 – 494 MHz
Stop 518-654 MHz; >40dB
Pass 678 – 1300 MHz



BSF 574-654H

42497

Pass 5 – 550 MHz
Stop 574-654 MHz; >40dB/35dB
Pass 678 – 1300 MHz



Return path attenuators

List of available products

Type Number
Item Number
Attenuation (5-65 MHZ)


RPA 3-F

50703

Returnpath attenuator 3 dB, F-Male / F-Female
Attn: 5 – 65 MHz, Pass: 85 – 1000 MHz
Free rotating F-nut



RPA 6-F

50706

Returnpath attenuator 6 dB, F-Male / F-Female
Attn: 5 – 65 MHz, Pass: 85 – 1000 MHz
Free rotating F-nut



Return path attenuators – On request

List of available products on request

Type Number
Item Number
Attenuation (5-65 MHZ)
File

3 dB-F RPA

50723

3 dB ± 0.5 dB

6 dB-F RPA

50726

6 dB ± 0.5 dB

9 dB-F RPA

50729

9 dB ± 0.5 dB

12 dB-F RPA

50732

12 dB ± 0.5 dB

Return path stopfilter – On request

List of available products on request

Type
Item Number
Description
File

HPF 118

51006

Pass 118 – 1006 MHz Stop 5 – 87 MHz

Broadband only filter – On Request

List of other filters and attenuators

Type Number
Item Number
Description
File

TBF 5-214/438-530/822

42498

Triple band pass filter
Pass bands: 5 - 214/438-530/822 MHz
Stop bands: 238 - 414/654-798 MHz

Other products

List of other filters and attenuators

Type Number
Item Number
Description


PPA 20

42520

Attenuator 0.5 – 20 dB, 300 mA, 5 – 2300 MHz
CENELEC Class A, Category A



DKT F16

52016

Wall delivery/connection point, 0 dB
High return loss
0 – 2300 MHz



DKT F16 cover

52017

Cover plate, white, for DKT F-16



DKT LTE filters – On request

List of available products on request

Type Number
Item Number
Cuf-off Frequency
File

LTE 694T

43797

694 MHz

LTE 790T

42462

790 MHz



Other coaxial products you might find interesting

Galvanic isolators

DKT’s galvanic isolators eliminates problems from differences in the potential between the distribution network and the in-home network.

Read more

Other

Home network interface products connecting the distribution network to the home network.

Read more

knowledge

Why Equalizers are vital for DOCSIS 3.1 deployments

This whitepaper explains why equalizers must be used in DOCSIS 3.1 deployment.

Read more
